Description

• E

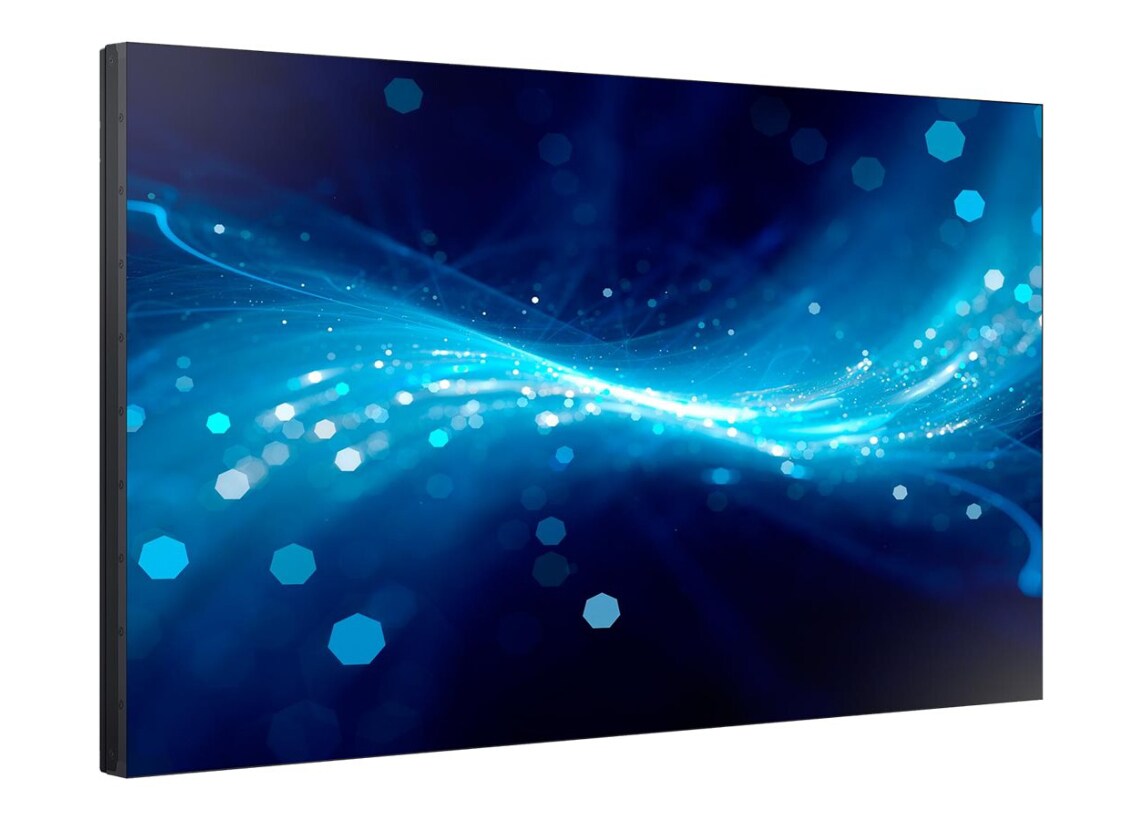

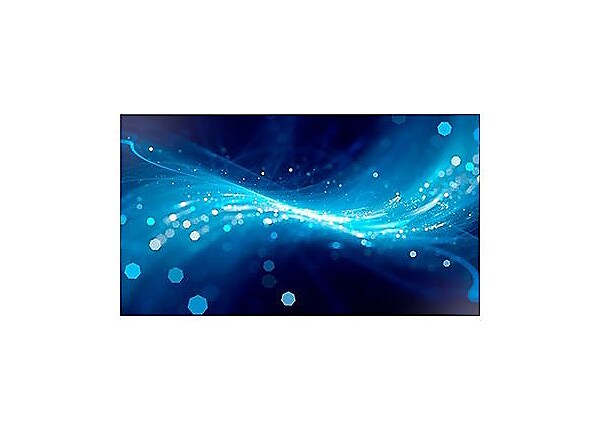

• 55″ Diagonal Class UMH-E Series LED display
• digital signage
• 1080p (Full HD) 1920 x 1080
• direct-lit LED

Samsung’s video wall features an extreme narrow-bezel (1.7 mm) that produces a near-seamless picture across multiple screens without interruption, generating opportunities to captivate customers.

The displays’ non-glare panel optimizes content presentation even under ambient lighting. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy.

Users can configure the displays into daisy chains as large as 5×5 without requiring expensive external graphic cards or UHD splitters. Samsung’s displays instead use Display Port (DP) 1.2 and HDMI ports to support advanced video interfaces and elevate content with resolution as high as 4K.

Tech Specs

Specifications are provided by the manufacturer.

• Header

  • Manufacturer :Samsung, Samsung Digital Signage
  • Brand :Samsung
  • Product Line :Samsung
  • Model :UM55H-E
  • Series :UMH-E Series

• Television

  • Type :LED-backlit LCD flat panel display
  • Commercial Use :Yes
  • Commercial Targeting :Digital signage
  • LCD Backlight Technology :LED backlight
  • LED Backlight Type :Direct-lit LED
  • Video Interface :HDMI
  • HDMI Ports Qty :2
  • PC Interface :DisplayPort, DVI
  • Diagonal Class :55 inch
  • Diagonal Class (metric) :140 centimetre
  • Resolution :1920 x 1080
  • Display Format :1080p (Full HD)
  • Response Time :8 millisecond
  • Image Aspect Ratio :16:9
  • Image Contrast Ratio :4000:1
  • Viewing Angle :178°
  • Viewing Angle (Vertical) :178°
  • Brightness :500 candela per square metre
  • Coating :Anti-glare
  • Design :Extreme Narrow Bezel
  • Picture Enhancements :Mega Dynamic Contrast Ratio
  • Sensors :Temperature sensor
  • Additional Features :Pivot, Multiple Display Control (MDC), Daisy Chain

• Commercial Display

  • Operating Hour :24 Hours
  • Features :Image Rotation, Advanced Color Management (ACM), Button lock, Auto Source Switching & Recovery

• TV Tuner

  • TV Tuner Presence :No
  • Tuners Configuration :No tuner

• Remote Control

  • Type :Remote control

• Connections

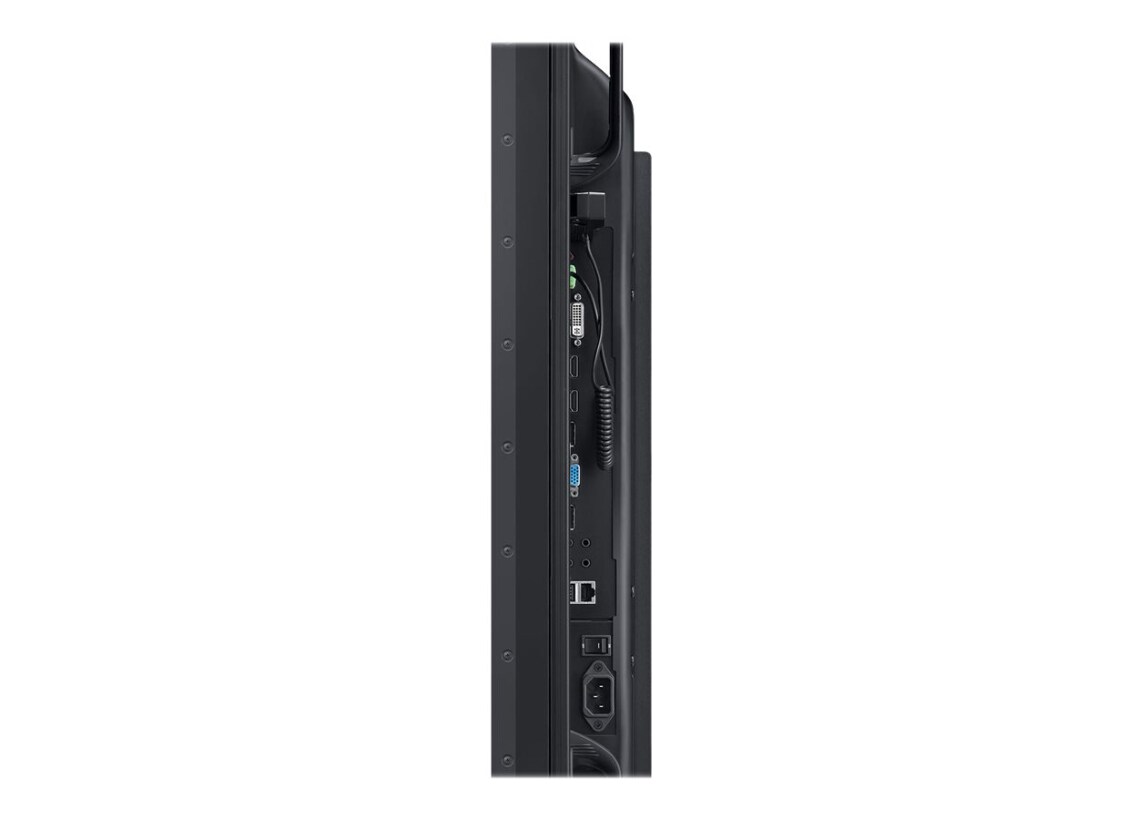

  • Connector Type :USB, DVI-Digital, Audio line-out, Infrared input, DisplayPort input, Audio line-in, RGB input, DisplayPort output, 2 x HDMI input

• Cable Details

  • Cables Included :DisplayPort cable

• Power Device

  • Type :Power supply
  • Nominal Voltage :AC 120/230 V
  • Frequency Required :50/60 hertz
  • Power Consumption Operational :297 watt
  • Power Consumption Stand by :0.5 watt

• Power

  • Energy Class :Class G
  • Power Consumption (On mode) :120 watt

• Miscellaneous

  • Color Category :Black, Black
  • Included Accessories :Batteries
  • Flat Panel Mount Interface :600 x 400 mm
  • Compliant Standards :NOM-019-SCFI-1993, TUV, KN24, CCC, BSMI CNS 13438, AS/NZS 3548, IRAM, EN55024, NEMKO, C-Tick, EMC, PCBC, CSA C22.2 No. 60950-1, UL 60950-1, GB 9254-2008, EN 60950-1, VCCI V-3, KN22, GB 17625.1-2012, SASO, CISPR 22, IEC 60950-1, FCC Part 15 B Class A, HDCP 2.2, BSMI, GOST, GB 4943.1-2011, KC, KCC, EN55022

• Dimensions & Weight

  • Width :121.16 centimetre
  • Depth :9.63 centimetre
  • Height :68.24 centimetre
  • Weight :21 keg

• Dimensions & Weight (Shipping)

  • Shipping Width :135.5 centimetre
  • Shipping Depth :32 centimetre
  • Shipping Height :80.9 centimetre
  • Shipping Weight :28.2 keg

• Environmental Parameters

  • Min Operating Temperature :0 degree Celsius
  • Max Operating Temperature :40 degree Celsius
  • Humidity Range Operating :10 – 80%
