Description

• B
• 55″ Diagonal Class UDE-B Series LED display
• digital signage
• 1080p (Full HD) 1920 x 1080
• direct-lit LED

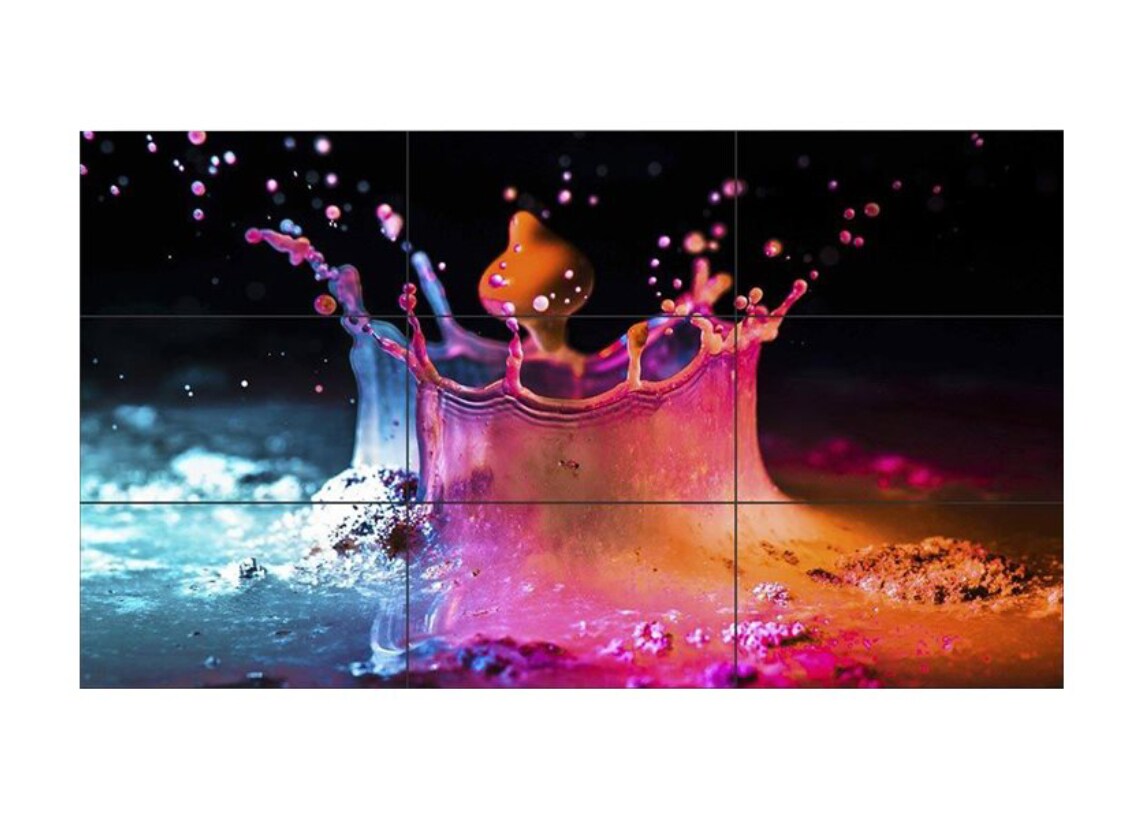

The Samsung UD55 advances LCD video wall technology by reducing the bezel-to-bezel (BtB) spec from 5.5mm to 3.5mm compared to predecessor models. Along with factory-tuned color calibration for consistency across multiple displays and the embedded SMART Signage Platform (SSP), you can efficiently achieve seamless matrices, while LED backlighting reduces power consumption in large installations.

Tech Specs

Specifications are provided by the manufacturer.

• Header

  • Manufacturer : Samsung LFD
  • Brand : Samsung
  • Product Line : Samsung
  • Model : UD55E-B
  • Series : UDE-B Series

• Television

  • Type : LED-backlit LCD flat panel display
  • Commercial Use : Yes
  • Commercial Targeting : Digital signage
  • LCD Backlight Technology : LED backlight
  • LED Backlight Type : Direct-lit LED
  • Video Interface : HDMI
  • HDMI Ports Qty : 2
  • PC Interface : DVI, DisplayPort, VGA (HD-15)
  • Diagonal Class : 55 inch
  • Diagonal Class (metric) : 140 centimetre
  • Resolution : 1920 x 1080
  • Display Format : 1080p (Full HD)
  • Response Time : 8 millisecond
  • Image Aspect Ratio : 16:9
  • Image Contrast Ratio : 4000:1
  • Viewing Angle : 178°
  • Viewing Angle (Vertical) : 178°
  • Brightness : 500 candela per square metre
  • Coating : 44% haze
  • Design : Ultra Narrow Bezel
  • Picture Enhancements : Advanced Color Management
  • Sensors : Temperature sensor
  • Additional Features : Daisy Chain, Pivot, D-LED DID, Multiple Display Control (MDC), Digital daisy chain

• Commercial Display

  • Settings Cloning Capability : Yes
  • Operating Hour : 24 Hours
  • Features : Image Rotation, Auto Source Switching & Recovery, Magic Clone, Button lock

• TV Tuner

  • TV Tuner Presence : No
  • Tuners Configuration : No tuner

• Media Player

  • USB Port : Yes
  • USB Ports Qty : 1

• Remote Control

  • Type : Remote control

• Connections

  • Connector Type : DVI-D input, USB, Audio line-out, Audio line-in, Remote control, DisplayPort output, Infrared (IrDA), 2 x HDMI input, RS-232C output, DisplayPort input, RS-232C input, VGA input

• Cable Details

  • Cables Included : DisplayPort cable, Serial adapter

• Power Device

  • Type : Power supply
  • Nominal Voltage : AC 120/230 V
  • Frequency Required : 50/60 hertz
  • Power Consumption Operational : 198 watt
  • Power Consumption Stand by : 0.5 watt

• Power

  • Energy Class : Class G
  • Power Consumption (On mode) : 190 watt

• Miscellaneous

  • Color Category : Black, Black
  • Included Accessories : batteries
  • Flat Panel Mount Interface : 600 x 400 mm
  • Compliant Standards : RoHS, EMC, Plug and Play, DDC-2B

• Stands & Mounts

  • Stand : Optional

• Environmental Standards

  • ENERGY STAR Certified : Yes

• Dimensions & Weight

  • Width : 47.6 inch
  • Depth : 3.8 inch
  • Height : 26.9 inch
  • Weight : 51.37 lbs
  • Comments : Without stand

• Dimensions & Weight (Shipping)

  • Shipping Width : 57.1 inch
  • Shipping Depth : 14.5 inch
  • Shipping Height : 35.6 inch
  • Shipping Weight : 81.13 lbs

• Service & Support

  • Type : 3-year warranty

• Service & Support Details

  • Service & Support : Limited warranty – parts and labor – 3 years – on-site

• Environmental Parameters

  • Min Operating Temperature : 32 degree Fahrenheit
  • Max Operating Temperature : 104 degree Fahrenheit
  • Humidity Range Operating : 10 – 80%
